SK Convection

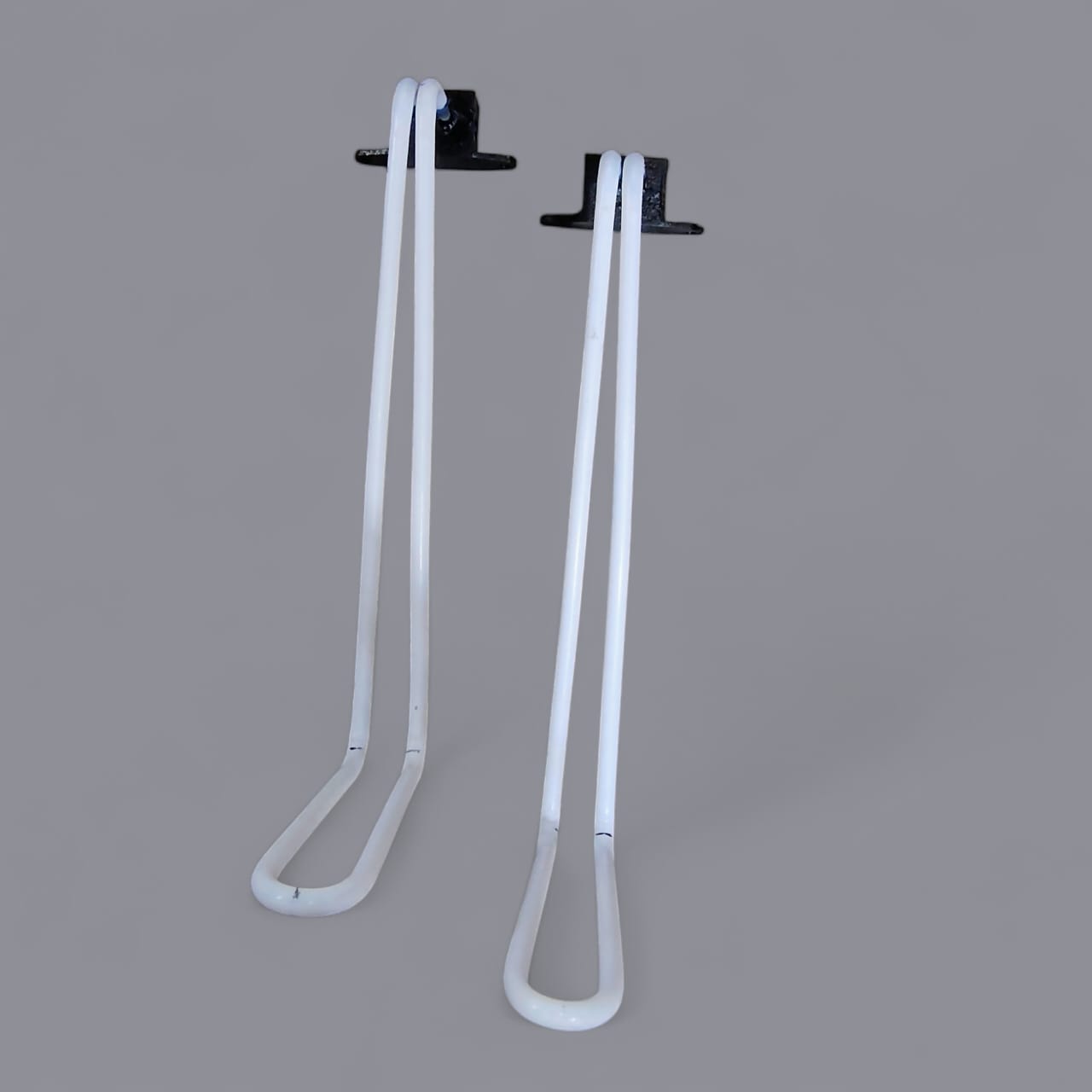

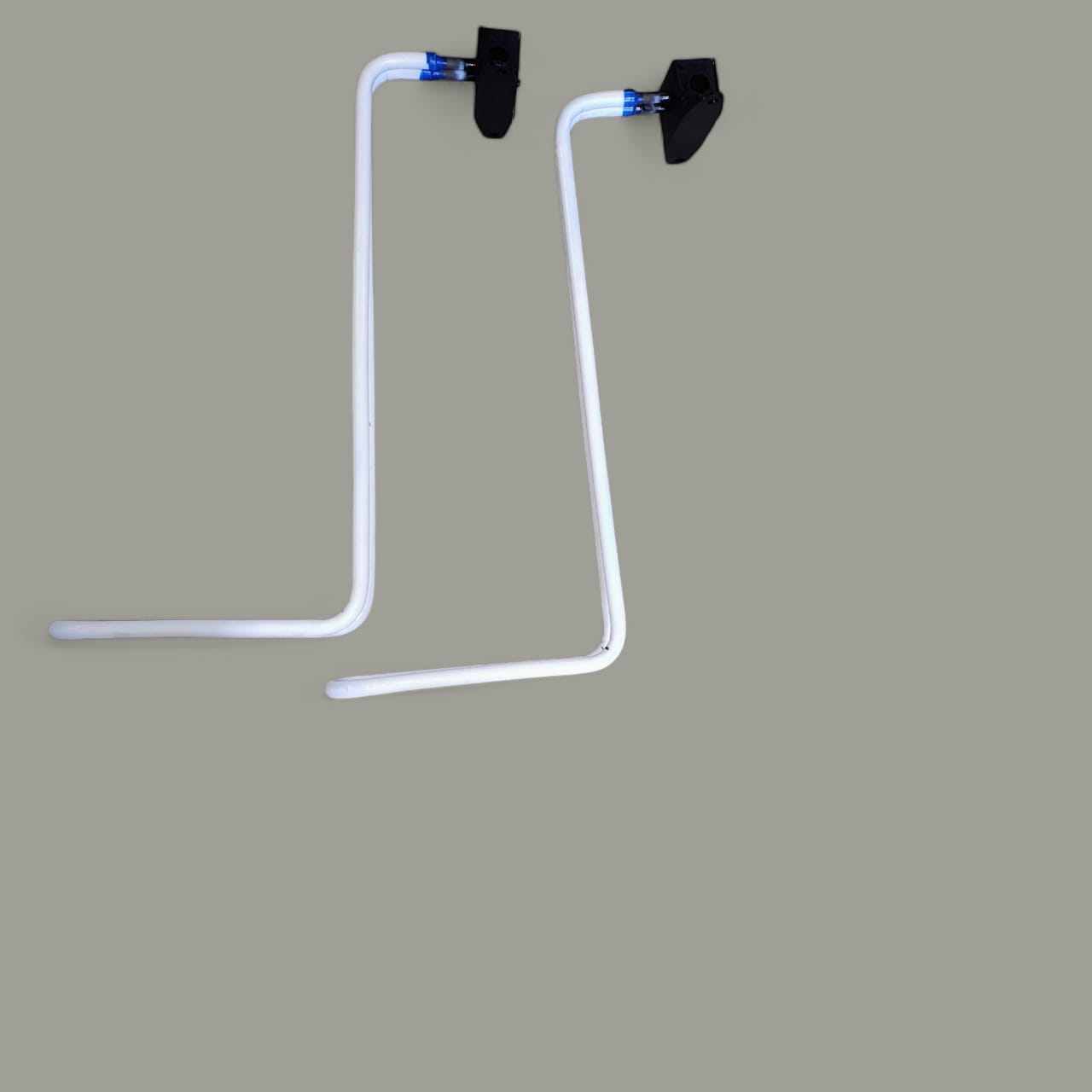

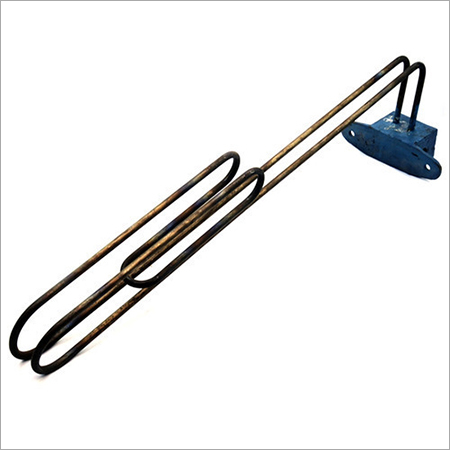

Alkaline Heater
We SK Convection is leading manufacturing of the alkaline heaters for various industries and for different segments.
Chrome nickel steel tubes are used to manufacture alkaline heaters. Used for the majority of alkaline cleaning solutions that would typically corrode mild steel. Chemical heater made out of Stainless Steel tubes that offer excellent corrosion-resistant properties for most plating solutions. Can also be used for solutions containing Nitric, Phosphoric, Zinc and Chromic acids.
.jpg)
.jpg)
.jpg)
Technical Specifications
| Parameter | Value / Standard |
|---|---|
| Rated Voltage | 230V / 440V Customizable |
| Sheath Material | SS304, SS316 & TITANIUM |
| Media Application | Water, Oil, Chemicals & Acid |
| Leakage Current | < 0.5 mA (High Safety) |
| Power Tolerance | ± 3% |
| Insulation Resistance | > 30 MΩ |
| Dielectric Strength (Cold) | 1500V AC (50Hz) / 1 min |
| Dielectric Strength (Working) | 1000V AC (50Hz) / 1 min |
