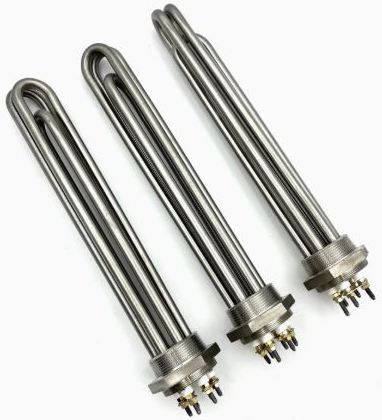

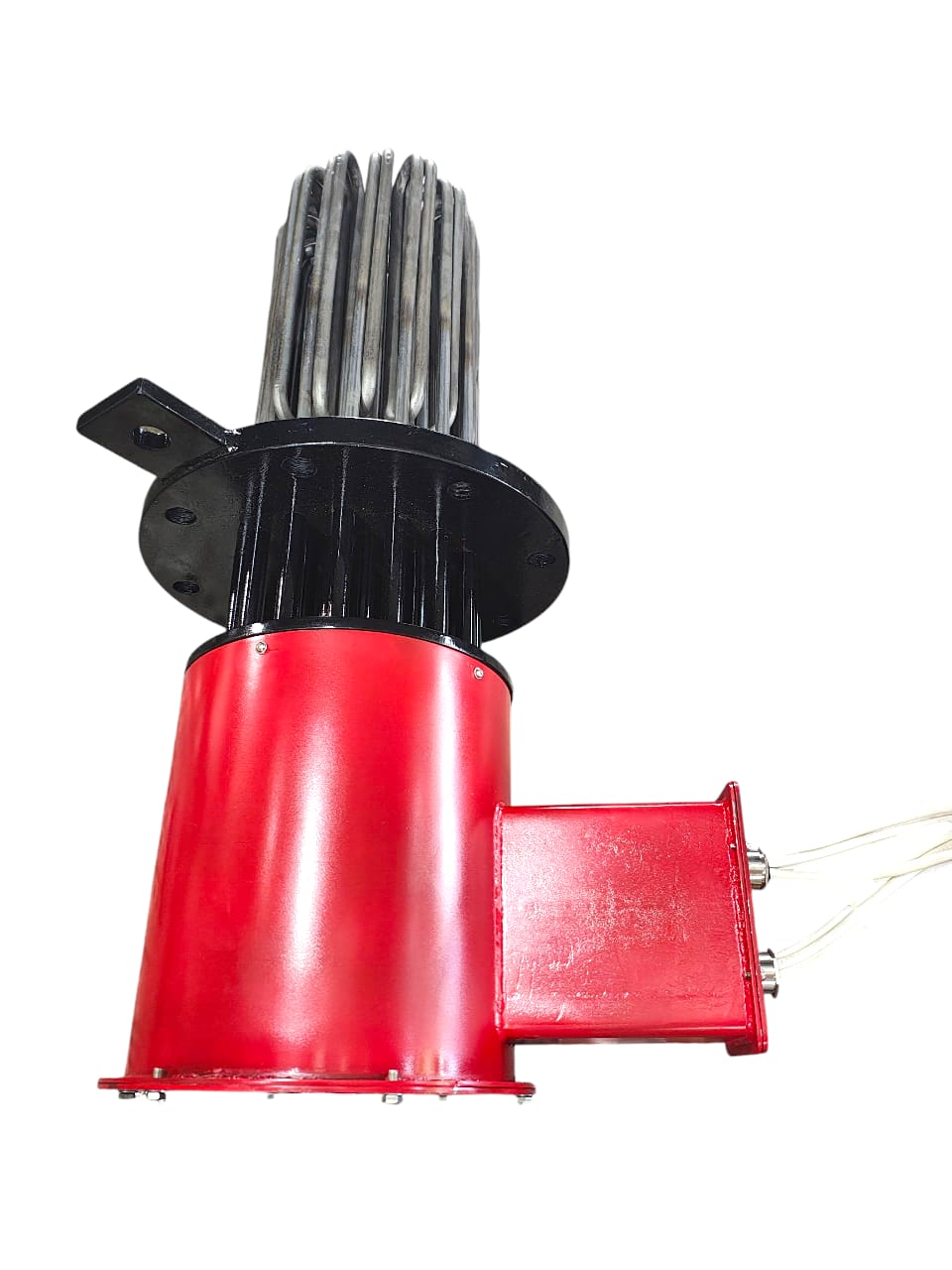

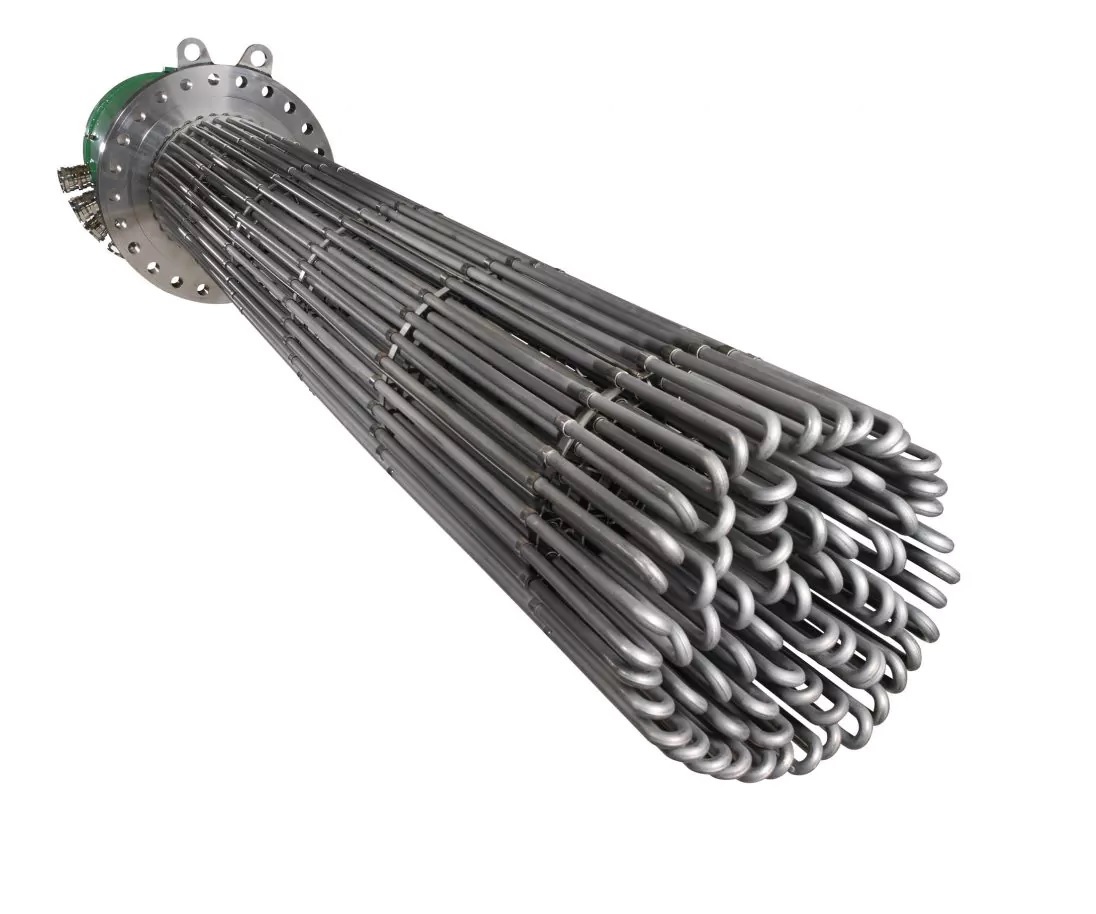

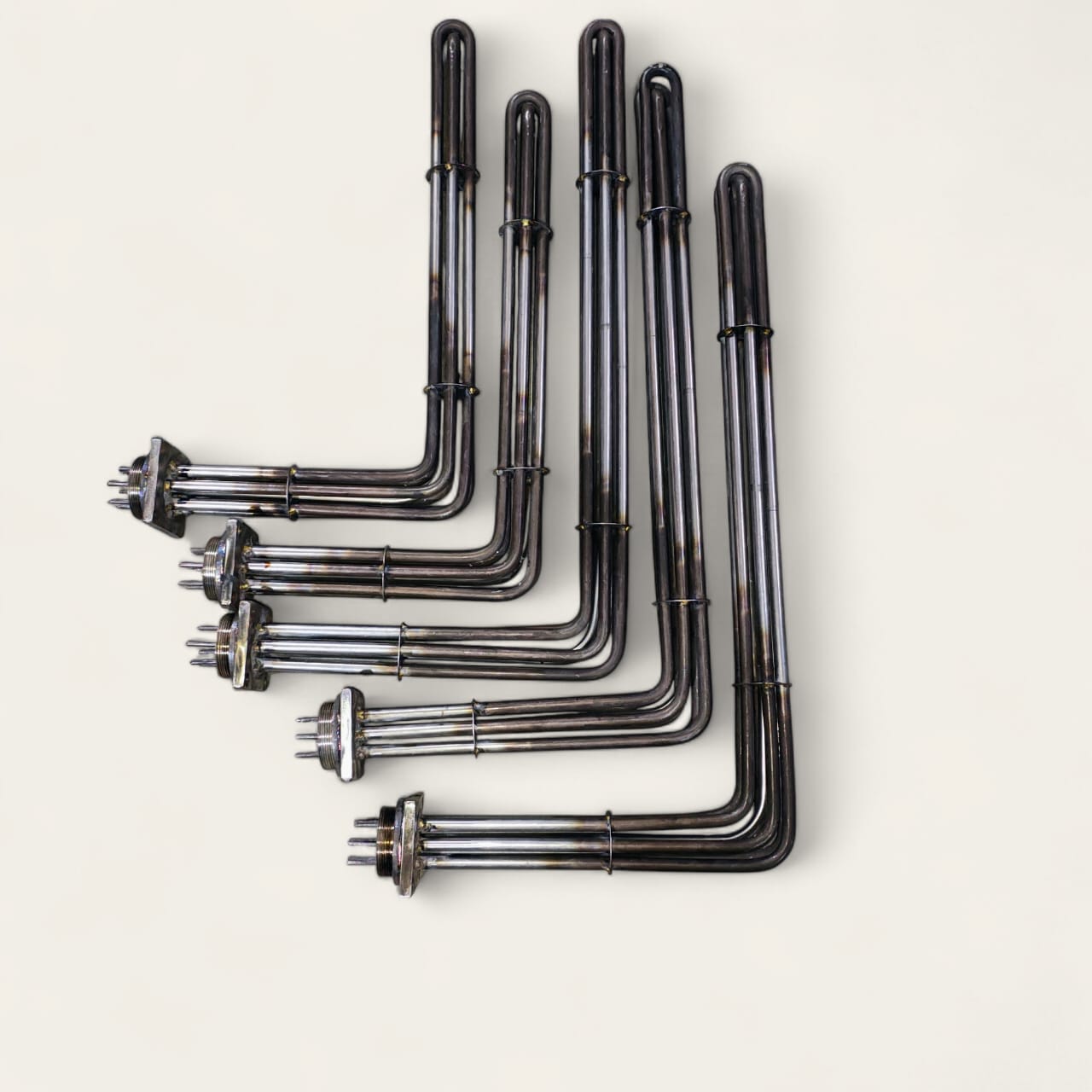

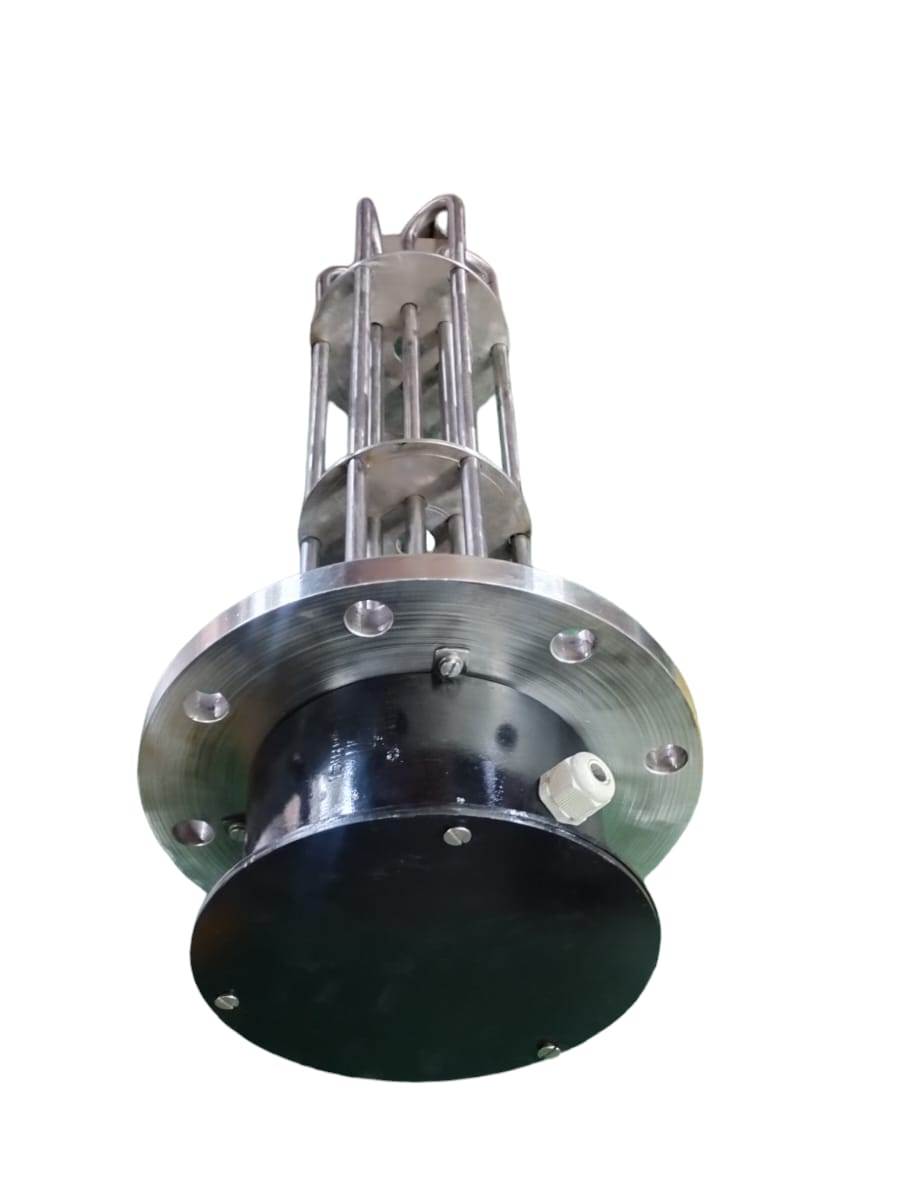

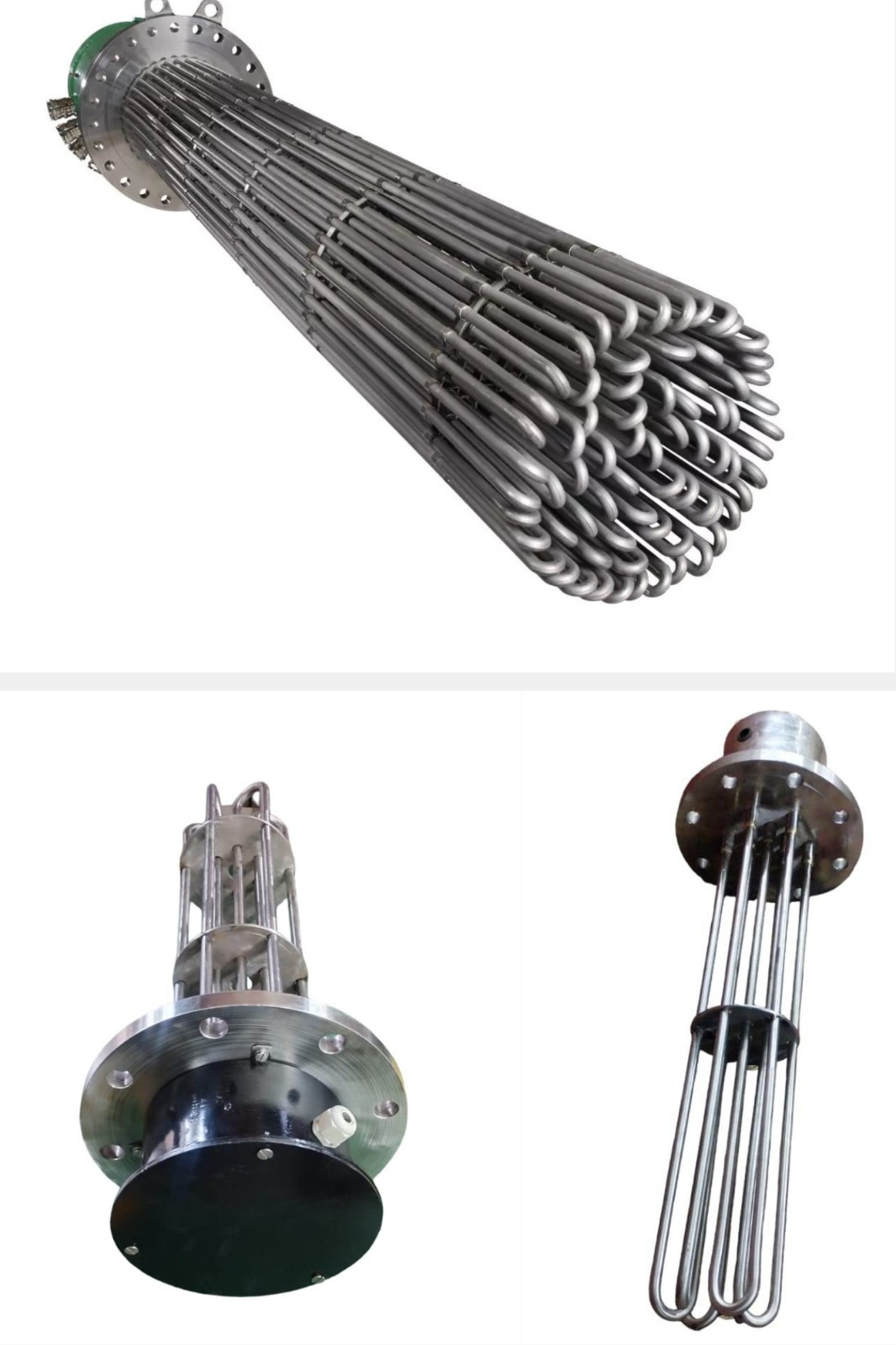

Flange Immersion Heaters
SK Convection is a leading manufacturer of electric flange immersion heaters for high-power industrial and process heating applications.
Flange immersion heaters are designed for direct heating of liquids in tanks, vessels, and pressurized environments. These heaters are typically inserted horizontally, allowing fluids to reach target temperatures quickly. They are an economical solution for large-volume heating in equipment like boilers, chillers, and chemical reactors.
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
| Technical Data & Design Features | |
|---|---|
| ANSI Flange Sizes | 3” to 14” (Standard), up to 60” (Custom) |
| Pressure Ratings | Class 150lb, 300lb (up to 2500lb possible) |
| Sheath Materials | SS 304/316, Incoloy 600/800/840, Copper, Titanium |
| Flange Materials | Steel, Stainless Steel, Mild Steel, Brass |
| Voltage | Up to 480 VAC |
| Temp. Control | Integral Thermostats or Thermocouples |
| Max Operating Temp | Up to 1200 °F (Depending on medium) |
Design Advantages
High-performance heating for pressurized and non-pressurized tanks
Direct immersion allows the fluid to reach the desired temperature quickly with high thermal efficiency.
Ideal for process air, heat transfer oils, clean/process water, lube oils, and even corrosive solutions.
Available with integral thermostats or thermocouples for precise temperature control and safety.
Engineered to handle ANSI class ratings up to 2500lb for extreme high-pressure industrial environments.
Excellent for fluid freeze protection, winterizing storage tanks, and maintaining viscosity in wax or molasses.
Industries & Applications
Serving critical heating needs across various sectors
Chemical Processing
Process reactors, plating chemicals, and corrosive solutions.
Pharmaceutical
Sterile heating and lab-grade thermal processing.
Oil & Gas
Lube oil heating, fuel oils, and waste oil systems.
Cement & Plastic
Industrial processing and heavy-duty thermal applications.
Food Industries
Heating for wax, molasses, and clean process water.
Water Management
Boilers, wash systems, and rinse tank heating.
