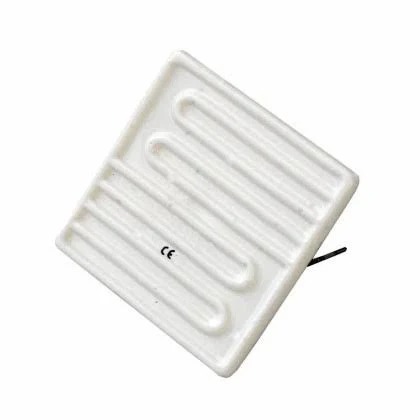

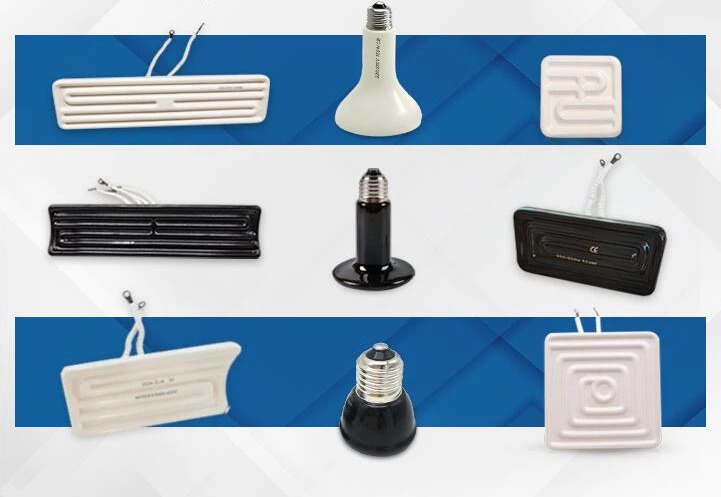

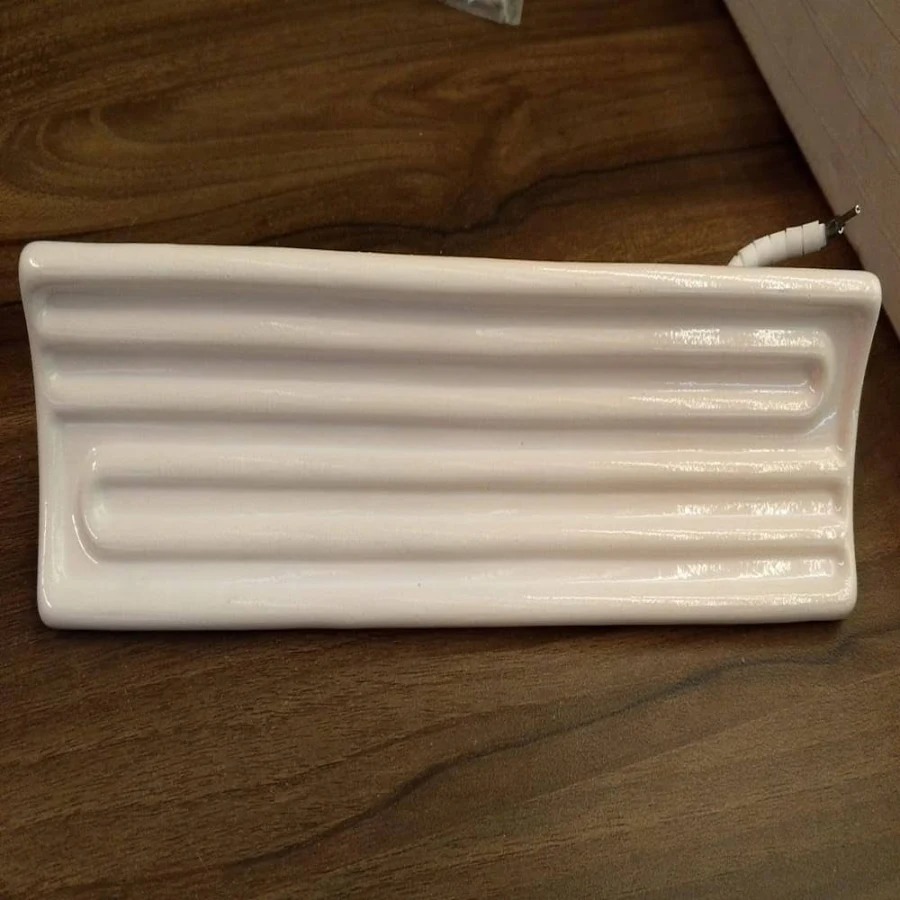

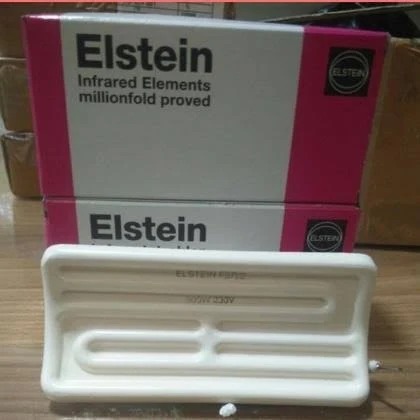

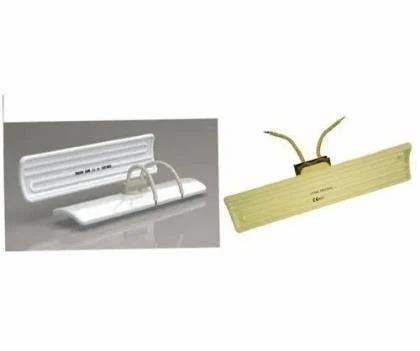

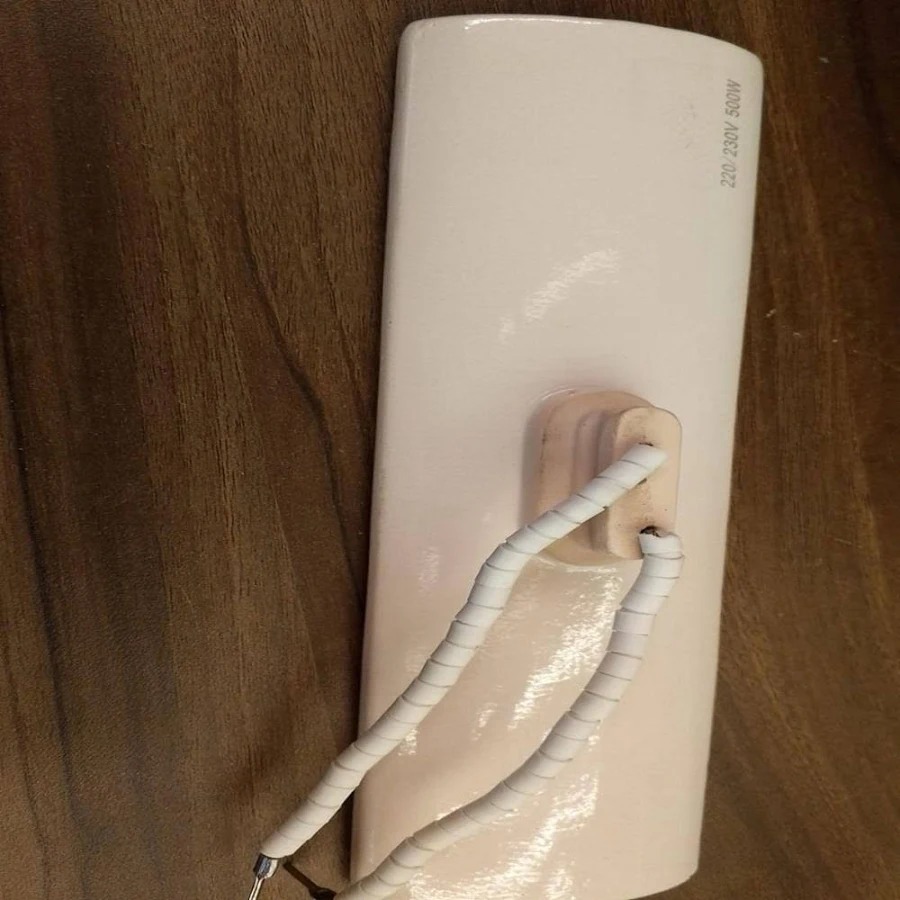

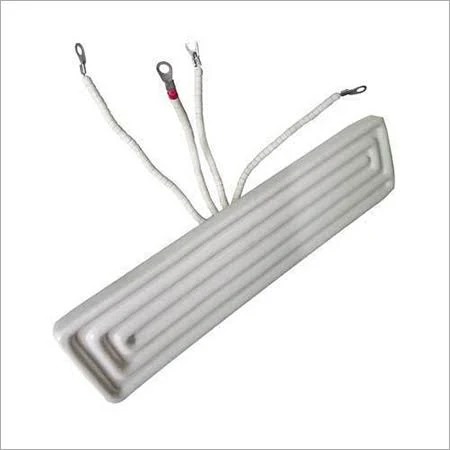

Infrared Ceramic Heater

Infrared ceramic heaters produce radiant heat by utilizing ceramic elements that emit infrared radiation, which directly warms objects and people in its path rather than the surrounding air. This makes them highly efficient for targeted zone heating.

Ceramic elements operate in the temperature of 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the 2 - 10 micron range. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater the most popular infrared radiant emitter on the market. A range of aluminized steel reflectors are also available to ensure the maximum amount of infrared radiation is reflected forward to the target area.

The element wire of Ceramic Infrared Heater is embedded in glazed refractory which protects the wire from atmosphere to get longer life. In normal operating condition the life of the heater for most application would be well in excess of 10,000 hrs of 80% power. These are available with built in J or K Type Thermocouple or without Thermocouple variants in Yellow, White & Black colors.
