Bundle Rod Heater
We SK Convection is leading manufacturer of Bundle rod heater with radiant tubes . Bundle rod heaters will be available in a slotted circular ceramic disc that holds the multiple rod heating elements and centre rod SS310 is used for avoid sacking the heating element at higher temperatures and terminal rod is made out of SS310 rod.
Bundle Rod Heater is suitable for Industrial ovens and furnaces for aging, annealing, brazing, hardening, heat treating, holding, Aluminum melting, powder coating & sintering Furnace.

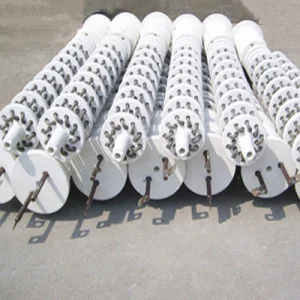

.jpg)

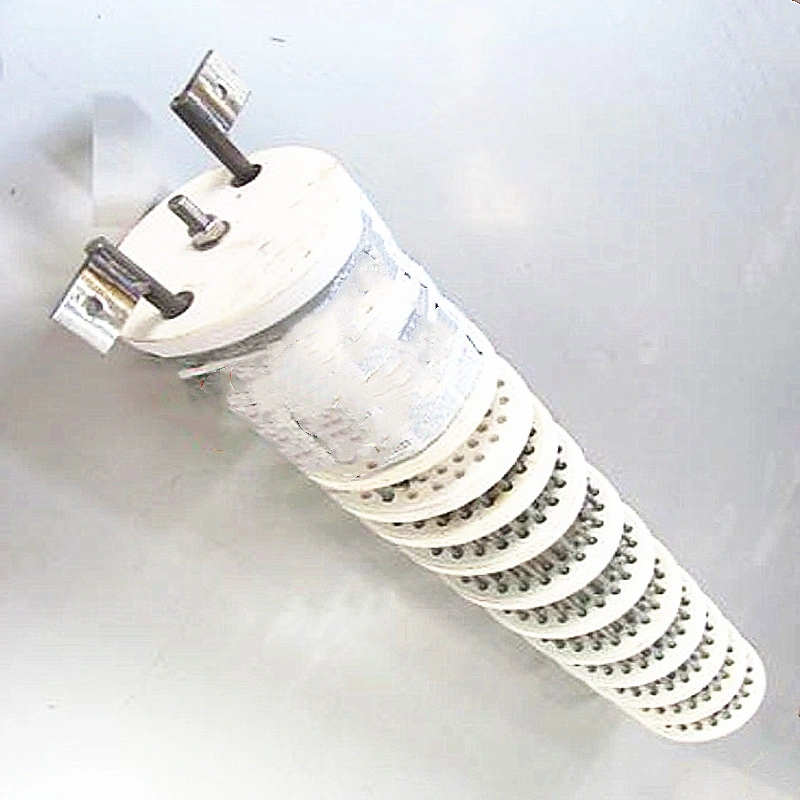

.jpg)

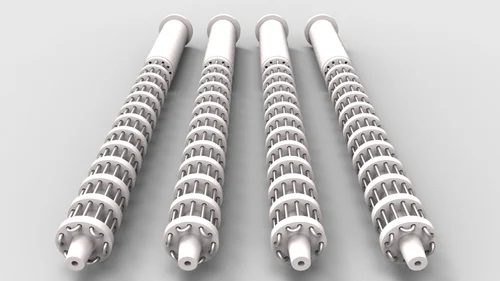

.jpg)

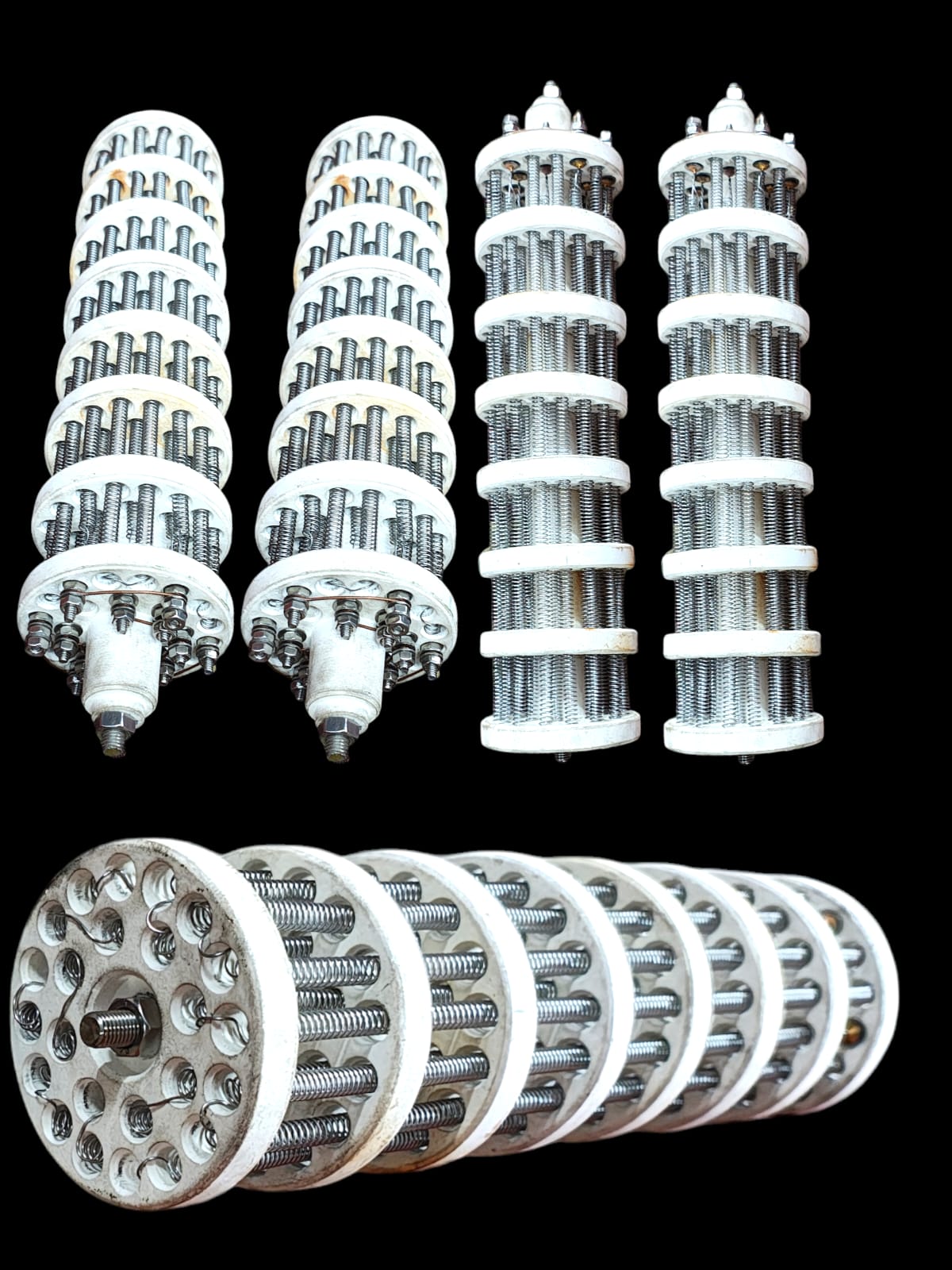

.jpg)
Technical Data Sheet
| Parameter | Specification |
|---|---|
| Heating Element | Kanthal A1, NiCr 80/20 |
| Radiant Tube Material | SS310 & Inncoly-600 (customized – Diameter, Length and Flange) |
| Temperature Range | up to 1100°C for NiCr 80/20 & Kanthal A1 is up to 1200°C |
| Ceramic Disc | flower / cup / circular type |
| Ceramic Size | Standard size is 45 mm to 155 mm and it can customize as per the requirements. |
Applicable for various Industries
In melting furnace and aluminum holding furnace
In steel industries, for galvanizing furnace
In automotive industries, heat treatment furnace
Annealing furnace
Carburizing furnace
Sintering Furnace
Hardening & Tempering furnace
Features
Powerful heating Capacity.
It can be mounted both types vertically & also horizontally.
Temperature control, assembly and maintenance can all be done very easily.
Long Lasting life for 24/7 shifts.
